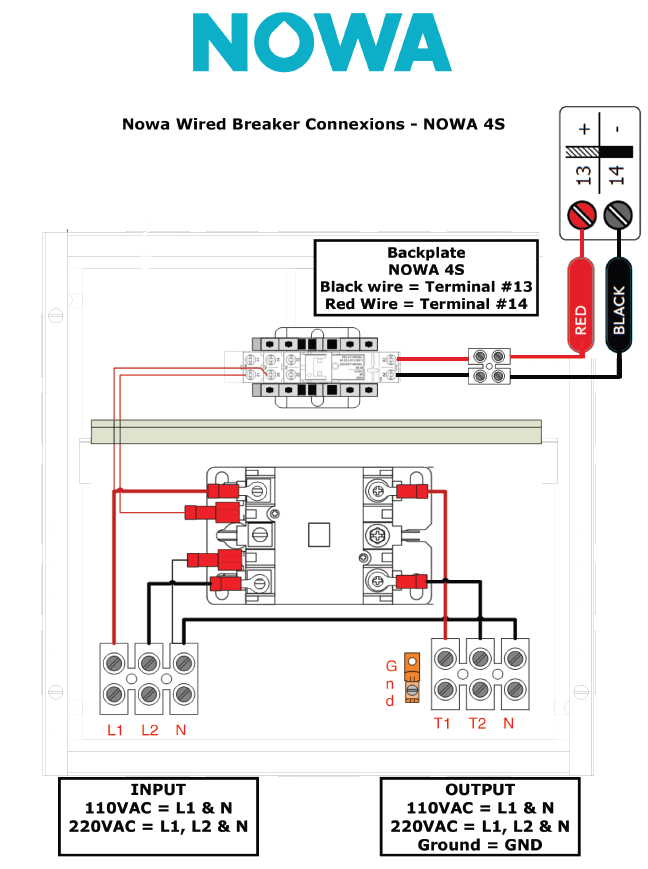

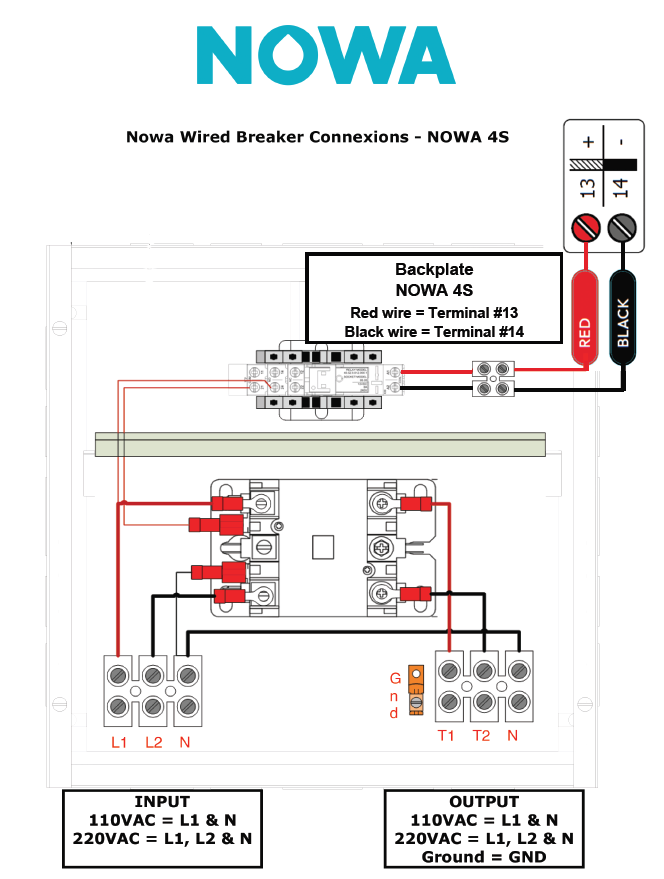

Here is the schematic that explain how to connect your NOWA electrical breaker to your NOWA 4S system.
By connecting the breaker like on the schematic, you will be able to control it via the valve control of the NOWA 4S
If you open the valve, it will activate the breaker.
If you close the valve, it will deactivate the breaker
