Breaker installation with a Nowa 360 system

Modified on Thu, 27 Oct, 2022 at 12:12 PM

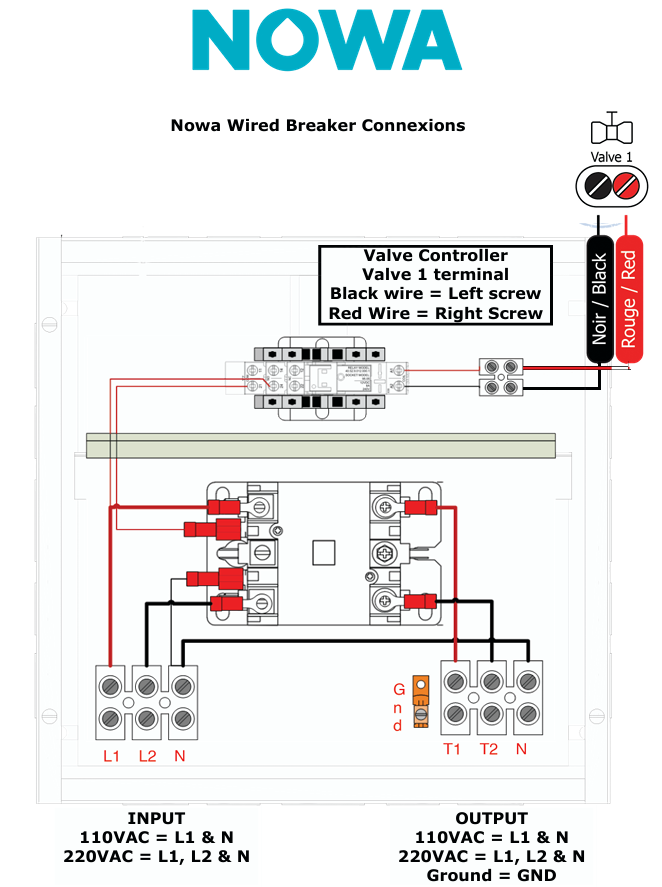

Here is the schematic that explain how to connect your Nowa breaker to your Nowa 360 system.

By connecting the breaker like on the schematic, it will follow the same status as the valve that is connected in parallel.


If you press "open valve" it will activate the breaker.

If you press "close valve" it will deactivate the breaker
